Description
Hitec HS-705MG – Metal Gear 1/4 Scale Servo

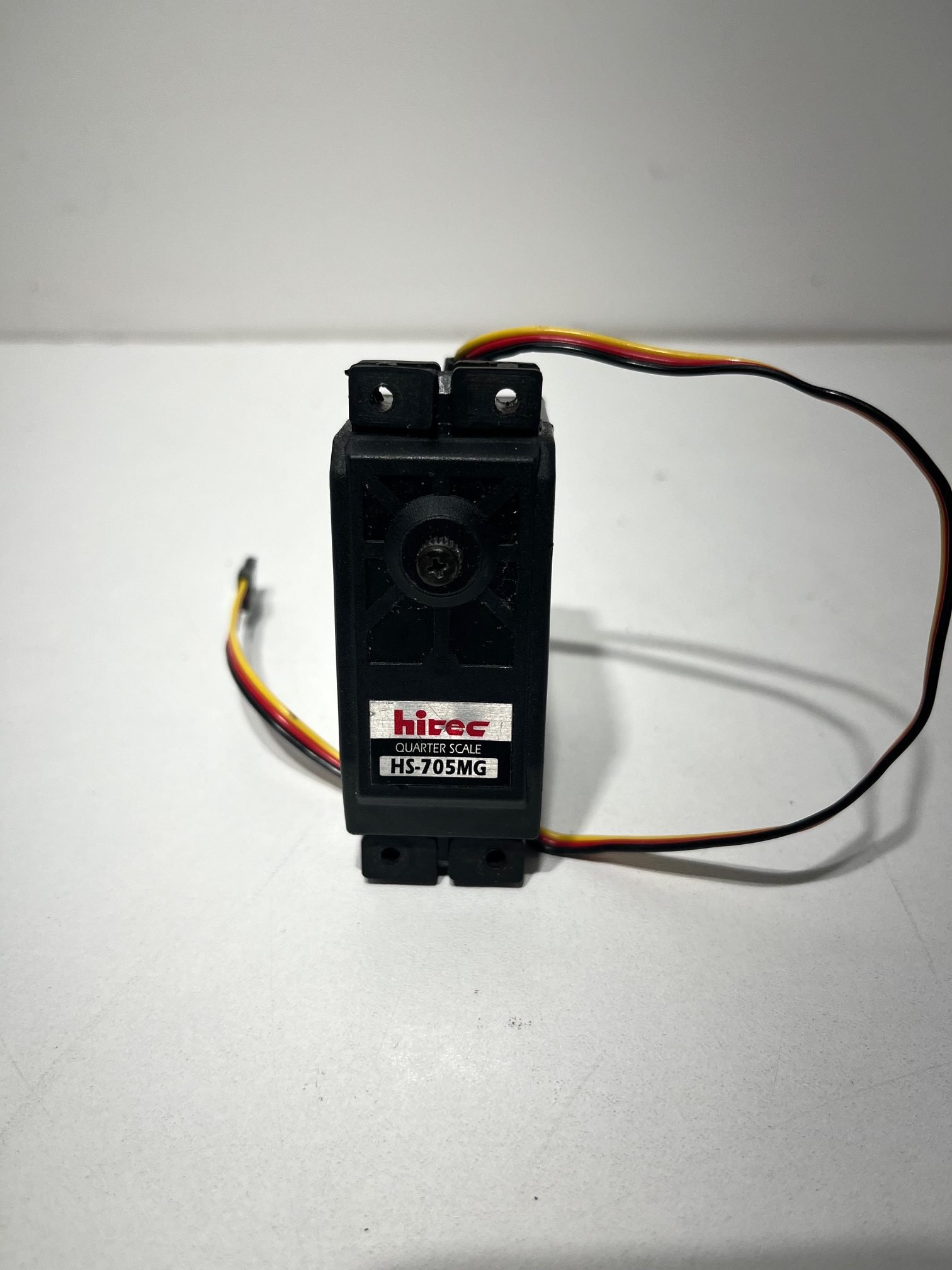

Servo not supplied with servo arms. Supplied servo only as you can see in the photos. Servo in good but used condition.
Please see below for servo spec:
| Torque: | 4.8V: 161.10 oz-in (11.60 kg-cm)
6.0V: 201.40 oz-in (14.50 kg-cm) |
| Speed: | 4.8V: 0.26 sec/60°
6.0V: 0.20 sec/60° |
| Weight: | 4.72 oz (133.8 g) |
| Dimensions: | Length:2.33 in (59.2 mm)
Width:1.14 in (29.0 mm)
Height:2.05 in (52.1 mm) |
| Motor Type: | 3-pole |
| Gear Type: | Plastic |
| Rotation/Support: | Single Bearing |
| Rotational Range: | 180° |
| Pulse Cycle: | 20 ms |
| Pulse Width: | 900-2100 µs |
| Connector Type: | (Hitec/JP) |
